Every system is custom‑engineered: lightweight high‑strength aluminum, reinforced corner joints, soft‑close doors, and fire‑safe compatibility.

HAC‑AL‑6620 hot aisle 600x2000

CAC‑HD‑8020 cold aisle high density

FSD‑FIRE drop‑away fire panel

DOR‑SLD‑S self‑closing sliding

CHIM‑CRAH‑06 chimney for CRAC

EXT‑AL‑BLK black anodized

FILL‑TEL‑150 telescopic filler

GAP‑FLEX‑50 flexible gap seal

2,345+ configurations · mixed rack heights · AI cabinets

purpose‑built engineering

lightweight extrusions · reinforced corners · zero‑threshold doors

Eliminate air mixing

Hot exhaust fully enclosed, cold aisle isolated → CRAC efficiency +40%.

Reduce PUE to 1.2

Lower cooling energy, stable rack temps, high‑density ready.

Fire‑safe drop‑away

Panels integrate with suppression – safety without compromise.

Soft‑close / zero threshold

Sliding, swing, saloon doors with brush seals.

Mixed heights & AI racks

chimney integration, filler plates for non‑uniform racks.

rapid deployment

Pre‑assembled modules, lightweight, fast assembly.

⚡ economical · 19" compatible · welded steel frame

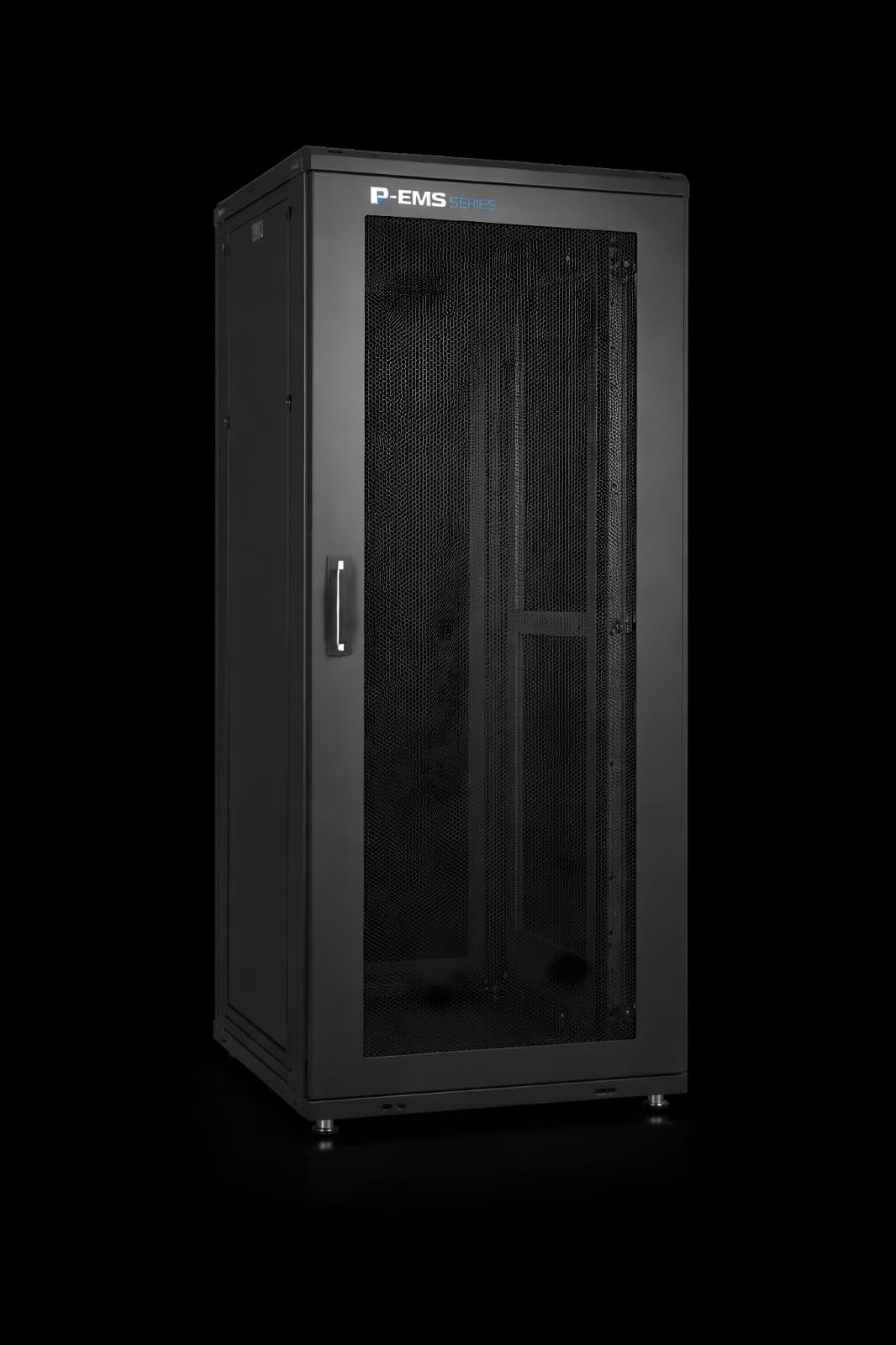

The P-EMS-ECO series offers essential rack features at an economical price — adjustable mounting rails, lockable glass/perforated doors, and cable management options. Built with a strong steel structure, the ECO series delivers optimal performance at an economical price point, making it ideal for budget-conscious projects without compromising on quality.

EMS–P-EMS-ECO-SN-FSR 6U 600x600

EMS–P-EMS-ECO-SN-FSR 9U 600x600

EMS–P-EMS-ECO-SN-FSR 12U 600x600

EMS–P-EMS-ECO-SN-FSR 15U 600x600

EMS–P-EMS-ECO-SN-FSR 17U 600x600

EMS–P-EMS-ECO-SN-FSR 22U 600x600

EMS–P-EMS-ECO-SN-FSR 27U 600x600

EMS–P-EMS-ECO-SN-FSR 32U 600x600

8 standard sizes · 6U to 32U · custom colors available

key features · P-EMS-ECO series

economical design · reliable performance · easy installation

Economical Rack Design

Optimized construction delivers maximum value with essential features at an economical price point for budget-conscious projects.

19" EIA Standard

Full compatibility with all standard rack-mountable IT, networking, and telecom equipment. Supports universal mounting requirements.

Strong Welded Frame

Heavy-duty steel frame construction ensures durability, stability, and long service life for your valuable equipment.

Lockable Front Door

Available in toughened glass or perforated steel options providing security while maintaining optimal airflow for cooling.

Adjustable Mounting Rails

Flexible equipment installation at different depths with adjustable 19" vertical mounting rails for various device sizes.

Rear Access Panel/Door

Easy access for cable management and equipment maintenance with convenient rear panel or door configuration.

Efficient Ventilation

Provision for roof-mounted cooling fans and perforated panels for optimal thermal management and equipment longevity.

Cable Entry Points

Top and bottom cable entry designed for neat, organized cabling and effective cable management.

technical highlights

detailed specifications · engineered for reliability

Rack Type

Floor Standing Rack

Series Name

P-EMS-ECO

Mounting Standard

19" EIA

Construction

Welded steel frame

Mounting Rails

Adjustable 19" verticals

Door Options

Glass / Perforated Steel

Cooling

Fan mounting provision on roof

Finish

Powder coated

Colour

Black / Grey / Custom on request

Installation

Free-standing with levellers / castors (optional)

P-EMS-ECO · model matrix & dimensions

AV / small network floor standing rack series · 19" width · 451mm mounting

Sr. No	Description	Height (mm)	U	Width (mm)	19" Width (mm)	Depth (mm)	Usable Depth	Castor Height (mm)	Wheel BKT (mm)	Total + Castors	Part Code
150	6U X 600x600	464	6U	600	451	600	560	85	46	101	EMS–P-EMS-ECO-SN-FSR
151	9U X 600x600	597	9U	600	451	600	560	85	46	101	EMS–P-EMS-ECO-SN-FSR
152	12U X 600x600	730	12U	600	451	600	560	85	46	101	EMS–P-EMS-ECO-SN-FSR
153	15U X 600x600	864	15U	600	451	600	560	85	46	101	EMS–P-EMS-ECO-SN-FSR
154	17U X 600x600	952	17U	600	451	600	560	85	46	101	EMS–P-EMS-ECO-SN-FSR
155	22U X 600x600	1175	22U	600	451	600	560	85	46	101	EMS–P-EMS-ECO-SN-FSR
156	27U X 600x600	1396	27U	600	451	600	560	85	46	101	EMS–P-EMS-ECO-SN-FSR
157	32U X 600x600	1620	32U	600	451	600	560	85	46	101	EMS–P-EMS-ECO-SN-FSR

All dimensions in mm · Type-2 F&R-M-Angle · Complete technical specifications available

applications

versatile deployment · multiple environments

Small & Medium Data Rooms

Office IT Infrastructure

Network & Communication Rooms

CCTV & Surveillance Systems

Educational Institutions

Retail & Commercial Installations

advantages of P-EMS-ECO series

why choose our economical rack solution

Budget-friendly
rack solution

Easy installation
and maintenance

Reliable performance
for standard IT loads

Compact footprint
with high usability

Ideal for non-critical
and entry-level deployments

why choose Paarvedan EMS ECO series?

commitment to accessible, high-quality infrastructure

The P-EMS-ECO Floor Standing Rack Series reflects Paarvedan EMS' commitment to providing accessible, high-quality infrastructure solutions for growing IT environments, offering the perfect balance between performance, durability, and affordability.

Performance Durability Affordability

ready to deploy your IT infrastructure?

small data rooms · office IT · networking · surveillance · education · retail

budget-friendly pricing 5‑year warranty easy installation
