Paarvedan EMS
Universal Runway Patch Rack System

Integrated Cable Routing & Patch Management for High-Density Data Centres

The Universal Runway Patch Rack System by Paarvedan EMS combines overhead cable runway infrastructure with vertical patch rack management to create a clean, scalable, and high-capacity cable distribution solution for modern data centres and network facilities.

Designed for high-density fiber and copper patching environments, this system enables seamless routing from overhead runway to patch panels, ensuring organized cabling, improved airflow, and faster maintenance operations.

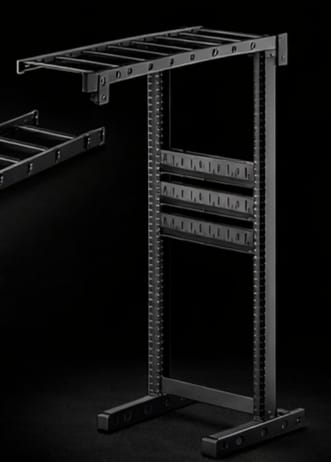

Universal Runway Patch Rack System

📐 Flexible Configurations

The Universal Runway Patch Rack System is available in multiple configurations:

Single-sided
Double-sided
Fiber Panels
Copper Panels
Hybrid Panels
2U
3U
4U
6U

Direct interface with Paarvedan EMS Universal Cable Runway. Custom designs for data centre layouts.

📊 Model Matrix & Dimensions

Patch Rack / Runway specifications (all dimensions in MM)

Patch Rack / Runway Part No. H h W w D
Patch Rack/Runway with Universal Mount kit/2U/Powder coatedRWA-013-2-PC1252U5141980
Patch Rack/Runway with Universal Mount kit/3U/Powder coatedRWA-013-3-PC1703U5141980
Patch Rack/Runway with Universal Mount kit/4U/Powder coatedRWA-013-4-PC2424U5141980
Patch Rack/Runway with Universal Mount kit/6U/Powder CoatedRWA-013-6-PC3346U5141980
Note: All dimensions are in MM. Custom configurations available on request.
2U | 3U | 4U | 6U Available in multiple U sizes

🚀 Key Benefits

Direct cable routing

From runway to patch panels

Eliminates clutter

No floor congestion

Ultra-high density

Supports dense patching

Improves airflow

Better cooling performance

Faster MACs

Moves, adds, and changes

Professional presentation

Clean cable management

🏗 Heavy-Duty Modular Design

Structural steel frame

High load capacity

Integrated connections

Runway connection points

Adjustable rails

For patch panel mounting

Powder-coated finish

Corrosion-resistant

Cable fingers

Vertical routing channels

Built to support heavy fiber trunks and dense patch cord bundles.

🌬 Enhances Thermal & Operational Efficiency

The runway-patch rack integration:

Keeps cables clear

Out of airflow paths

Prevents hot spots

Near network equipment

Improves aisle cooling

Better thermal performance

Reduces downtime

Faster maintenance

🔧 Ideal For

Core network zones

Network distribution

Fiber cross-connect

Fiber distribution rooms

Meet-me rooms (MMR)

Carrier interconnect

Backbone routing

Data centre backbone

High-capacity patching

Dense patching areas

🏢 Applications

Hyperscale & Colocation Data Centres
Telecom Exchanges
Enterprise IT Rooms
Cloud Infrastructure Facilities
Network Operation Centers

🌟 Why Paarvedan EMS Universal Runway Patch Rack?

End-to-end efficiency

Complete cable routing

High-density ready

Future-proof architecture

Modular & expandable

Grows with your needs

Superior airflow

Thermal management

Seamless compatibility

EMS ecosystem integration

Integrated · Scalable · High-Density

Paarvedan EMS – Where Cable Infrastructure Meets Intelligent Design

Where Cable Infrastructure Meets Intelligent Design

Get expert advice for your patch management needs

free site assessment 5‑year warranty custom designs
