SILENT · SECURE · HIGH-PERFORMANCE

Paarvedan EMS
Acoustic Sound Proof Rack Series

Silent, Secure & High-Performance Server Enclosures for Noise-Sensitive Environments

The Paarvedan EMS Acoustic Sound Proof Rack Series is specially engineered to drastically reduce operational noise while maintaining superior airflow, cooling efficiency, and equipment protection.

Designed for offices, hospitals, studios, laboratories, control rooms, banks, and edge IT environments, these racks allow high-performance servers and networking equipment to operate quietly — without the need for a dedicated data centre room.

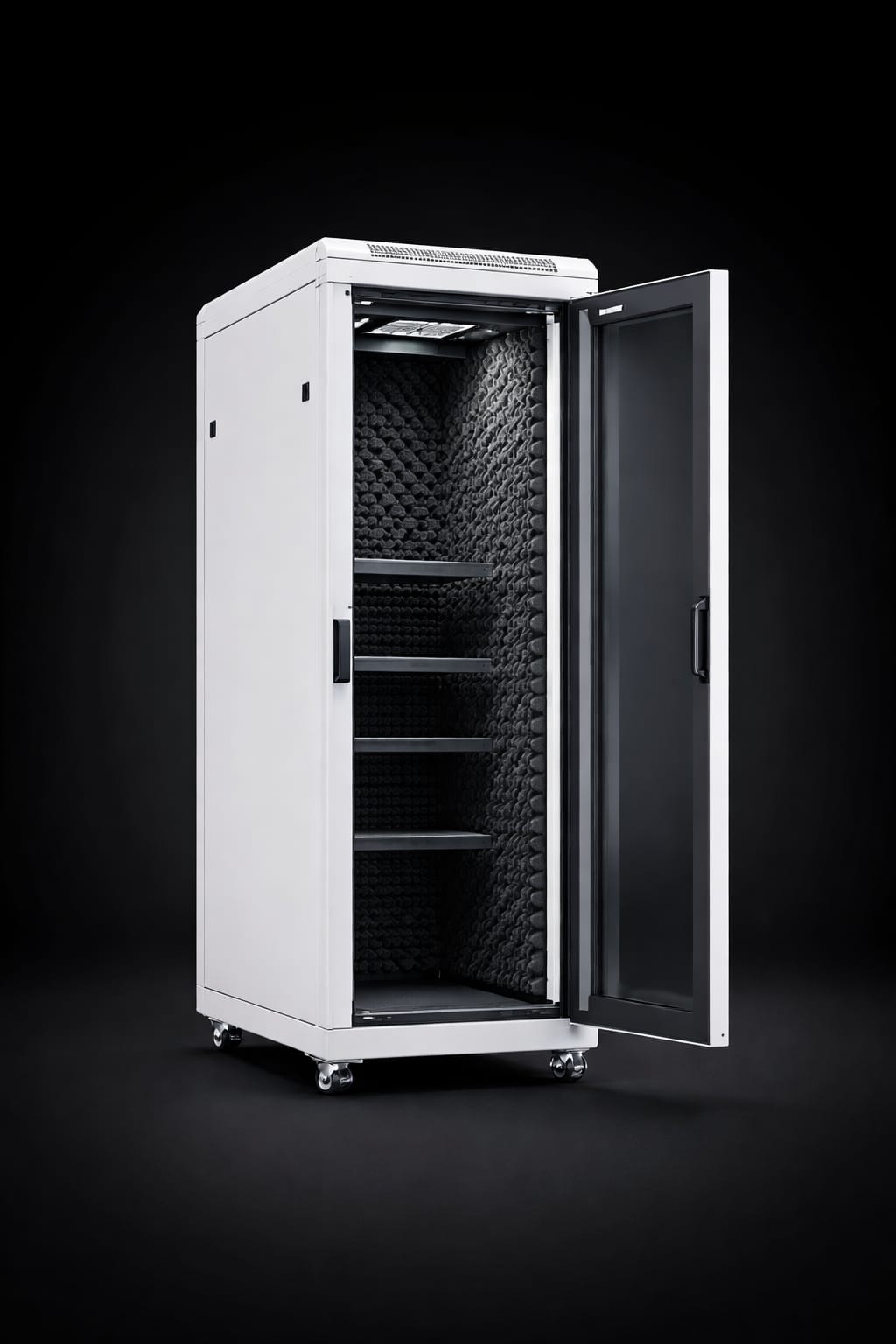

Acoustic Sound Proof Rack

🔇 Industry-Grade Noise Reduction Technology

Advanced acoustic insulation panels and vibration-damping construction reduce noise levels by:

20–35 dB noise reduction (depending on configuration)
  • Absorbing server fan & airflow sound
  • Eliminating mechanical vibration

Result: Near-silent IT operations in working environments

Custom configurations available on request

📊 Model Matrix & Dimensions

Acoustic Rack Series specifications (all dimensions in MM)

Acoustic Rack Series H h W w D d Caster Type Plinth Height
32U 600X1200 1565 32U 600 19'' 1200 1100 TYPE-3 50/100
42U 600X1200 2009 42U 600 19'' 1200 1100 TYPE-3 50/100
Note: Overall Height = Frame Height + Plinth or Caster. It is recommended to distribute the Load along with U space in the Rack. Dimensions are in MM.

📋 Abbreviations

H Overall height
h Usable height
W Overall width
w Usable width
D Overall depth
d Usable depth

❄ High-Efficiency Cooling

• Noise-attenuated ventilation paths
• High-flow silent fans
• Optional integrated cooling units
• Hot air exhaust routing

Maintains ideal server temperatures while keeping sound low.

🏗 Heavy-Duty Secure Enclosure

• Reinforced steel frame construction
• Lockable front & rear doors
• Sound-absorbing composite panels
• Grounding & bonding system
• Fire safety integration ready

🔐 Enterprise Security

• Lockable acoustic doors
• Optional smart locking systems
• Controlled airflow openings with sound traps

📏 Flexible Configurations

Available in multiple sizes with custom options

Standard Models & Specifications
Height Options18U, 24U, 32U, 42U (custom heights available)
Width Options600mm / 800mm
Depth Options800mm / 1000mm / 1200mm
Noise ReductionUp to 20–35 dB (configuration dependent)
Cooling OptionsPassive ventilation, silent fan kit, integrated cooling unit
SecurityLockable doors, smart locking system (optional)
ConfigurationServer + network + UPS combinations available
Custom DesignsAvailable upon request
Custom designs available for any requirement

🌍 Ideal Applications

Perfect for noise-sensitive environments

Corporate Offices
Hospitals & Labs
Broadcast Studios
Educational Institutions
Retail IT Rooms
Smart City Edge
Residential Server Rooms
Control Rooms
Banks
Medical Labs

🌟 Key Benefits

Why choose Paarvedan EMS Acoustic Racks

Ultra-low noise

Perfect for office and clinical environments

High thermal efficiency

Optimal cooling with minimal noise

No dedicated DC required

Place servers anywhere, quietly

Secure & tamper resistant

Enterprise-grade physical security

Compact & elegant design

Blends with any environment

Energy-efficient cooling

Lower operational costs

Powerful Infrastructure. Silent Performance.

Get expert advice for your noise-sensitive environment

free site assessment 5‑year warranty custom designs
