HIGH-STRENGTH · MODULAR · 19" COMPATIBLE

Paarvedan EMS
P-EMS 4 Post Rack Series

High-Strength Modular Racks for Data Centres, Servers & Network Infrastructure

The P-EMS 4 Post Rack Series by Paarvedan EMS is a heavy-duty, enterprise-grade racking solution engineered to support modern data centre equipment, high-density servers, telecom hardware, and network infrastructure.

With a reinforced four-pillar structure, adjustable mounting rails, and superior load-bearing capacity, these racks deliver maximum stability, flexibility, and long-term performance for mission-critical IT environments.

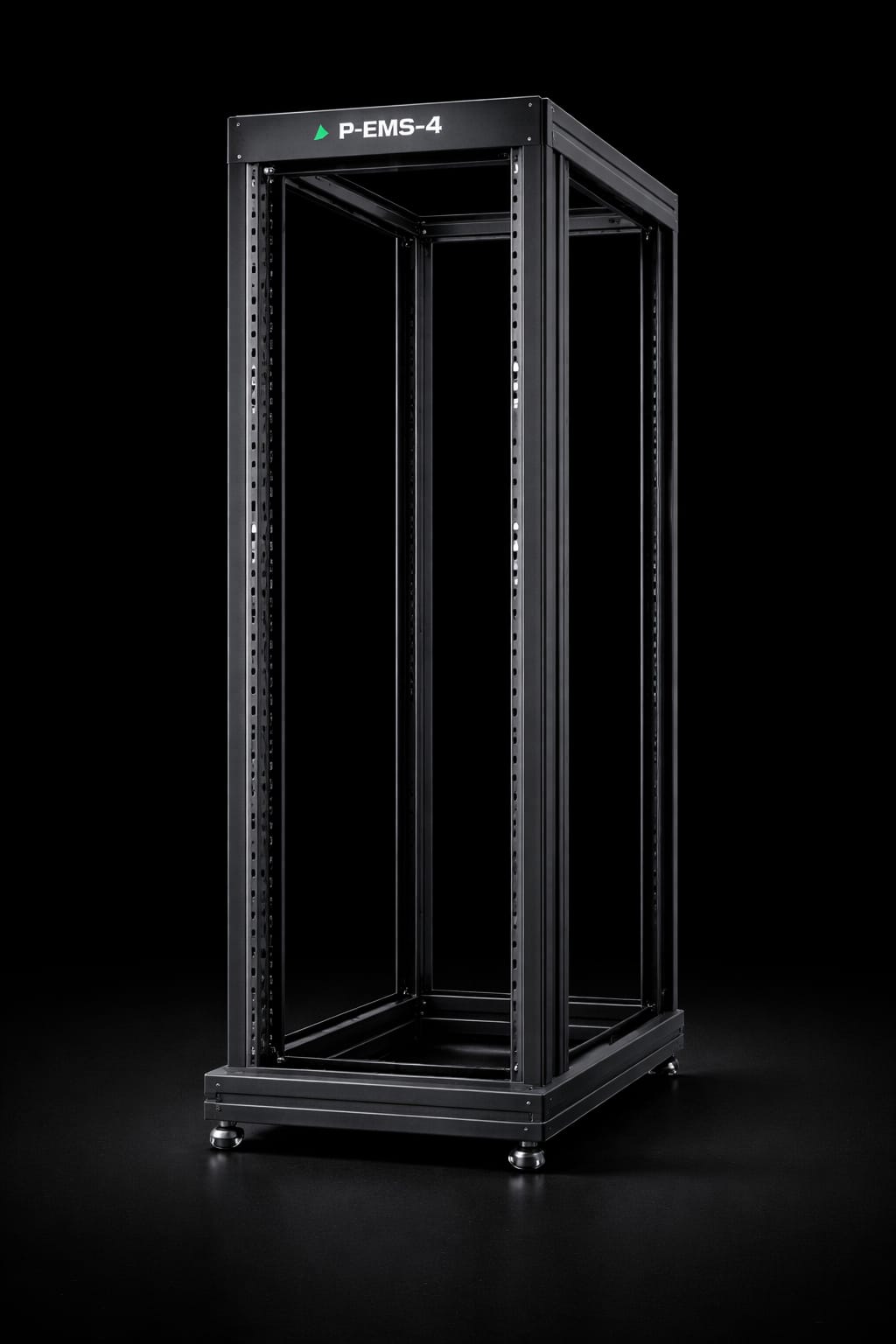

P-EMS 4 Post Rack Series

🏗 Industrial-Grade Build Quality

The P-EMS 4 Post Rack Series features:

19" Universal Compatibility
  • Precision-formed high-strength steel columns
  • Reinforced top & base structure
  • Welded and bolted hybrid construction
  • Powder coated corrosion-resistant finish
  • Grounding & bonding points for electrical safety

Built for 24x7 high-load data centre operations.

Custom configurations available on request

⚡ Key Advantages

Why choose Paarvedan EMS P-EMS 4 Post Racks

Strong 4-post frame

Heavy equipment support with high load capacity

Adjustable depth

Flexible mounting for diverse equipment sizes

Universal 19" mounting

Compatible with all standard equipment

Excellent airflow

Optimized cooling & cable routing

Modular design

Scalable with accessory support

📊 Model Matrix & Dimensions

P-EMS 4 Post Rack Series specifications (all dimensions in MM)

Description Part No. H h W w
OPEN RACK/Aluminium-M6 Tapped4Post/22U/Powder Coated/19"DINNAOR-4-22-PC-19112522U514450
OPEN RACK/Aluminium-M6 Tapped4Post/36U/Powder Coated/19"DINNAOR-4-36-PC-19174736U514450
OPEN RACK/Aluminium-M6 Tapped4Post/42U/Powder Coated/19"DINNAOR-4-42-PC-19201342U514450
OPEN RACK/Aluminium-M6 Tapped4Post/45U/Powder Coated/19"DINNAOR-4-45-PC-19214745U514450
OPEN RACK/Aluminium-M6 Tapped4Post/48U/Powder Coated/19"DINNAOR-4-48-PC-19228148U514450
Note: All dimensions are in MM. Custom sizes available on request.

📋 Abbreviations

H Overall height
h Usable height
W Overall width
w Usable width

🔧 Universal Equipment Support

Designed to mount all 19" standard equipment

Enterprise Servers

High-density server mounting

Storage Arrays

Network attached storage systems

Network Switches

Routers & networking hardware

Telecom Systems

BTS & communication equipment

UPS Modules

Power backup systems

Power Distribution

PDUs & power management

🌬 Optimized Airflow Performance

The open or semi-enclosed design allows:

Free airflow

Unrestricted cooling around equipment

Reduced hotspots

Minimized thermal issues

Lower energy usage

Reduced cooling infrastructure costs

Thermal accessories

Blanking panels, air diverters, chimney systems, aisle containment

📏 Available Options

Flexible configurations for every need

Standard Models & Configurations
Height Options24U to 52U (custom sizes available)
Depth Options600mm to 1200mm
Frame TypeOpen frame or enclosed versions
AccessoriesCable managers, shelves, roof fan units, PDUs
CompatibilityFully compliant with 19" rack standards
Custom BuiltAvailable on request
Custom-built racks available for any requirement

🏢 Ideal For

Perfect applications for P-EMS 4 Post Racks

Data Centres & Cloud Facilities
Enterprise Server Rooms
Telecom & ISP Networks
Government & PSU IT Projects
Banking & Financial Institutions
Industrial IT Infrastructure

🌟 Why Choose P-EMS 4 Post Racks?

High load capacity

Supports modern high-density servers

Modular scalable design

Grows with your infrastructure needs

Excellent cooling

Compatible with thermal management systems

Long service life

Durable construction for 24x7 operations

Cost-effective

Enterprise infrastructure at competitive price

Engineered for Strength. Designed for Performance. Built for the Future.

Paarvedan EMS – Powering the Digital Backbone

Engineered for Strength. Designed for Performance.

Get expert advice for your data centre infrastructure needs

free site assessment 5‑year warranty custom designs
