Paarvedan EMS –
Plinth

Paarvedan EMS Plinth delivers heavy-duty structural support for floor-standing IT racks — engineered for data centers, telecom rooms, and industrial IT environments with superior load distribution and floor protection.

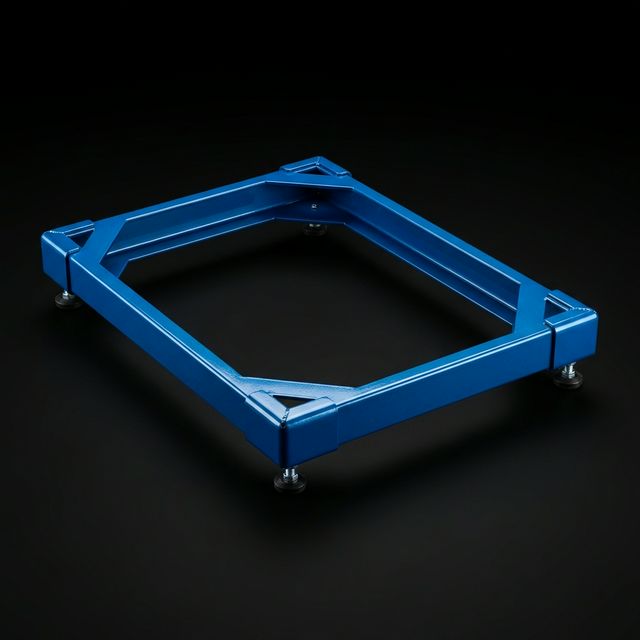

Paarvedan EMS Plinth

⚡ Paarvedan EMS – Plinth

Paarvedan EMS Plinth is a robust structural base designed to provide enhanced stability, load distribution, and floor clearance for floor-standing IT racks and enclosures. Engineered for data centers, telecom rooms, control rooms, and industrial IT environments, the EMS plinth ensures secure rack installation while improving cable management and airflow efficiency.

The EMS Plinth forms a solid foundation beneath the rack, elevating it from the floor to protect equipment from dust, water ingress, and accidental impact. It also allows convenient bottom cable entry and improved grounding, making it an essential accessory for high-density and mission-critical installations.

50 mm & 100 mm height options · 600 mm & 800 mm wide compatibility · 1500 KGS static load

Key Features

heavy-duty construction · precision-engineered · corrosion-resistant

Heavy-Duty Steel Construction

for high load-bearing capacity

Precision-Engineered Frame

for uniform weight distribution

Standard Height Options

(50 mm / 100 mm)

Full-Perimeter Support Design

for rack stability

Provision for Bottom Cable Entry

Convenient bottom cable routing and grounding access

Powder-Coated Finish

for corrosion resistance

Benefits

stability · protection · airflow · performance

Enhances rack stability and structural strength

Solid full-perimeter base keeps your rack firmly anchored in any environment.

Protects equipment from floor-level dust and moisture

Elevated clearance reduces risk of contamination and water ingress damage.

Improves cable routing and bend-radius management

Bottom cable entry provisions simplify structured cabling and reduce cable stress.

Supports high static and dynamic rack loads

Rated for 1500 KGS static load — built for high-density and mission-critical deployments.

Facilitates better airflow and thermal performance

Floor clearance promotes improved under-rack airflow for cooling efficiency.

Build Quality & Standards

  • Cold-rolled steel fabrication
  • Welded and reinforced construction
  • Powder coating with multi-stage surface treatment
  • Designed to comply with DIN / EIA / ISO rack standards
  • Compatible with EMS floor-standing rack series (600 mm & 800 mm wide)

Applications

  • Enterprise and Hyperscale Data Centers
  • Telecom & Networking Facilities
  • Banking, PSU, and Government IT Rooms
  • NOCs, SOCs, and Control Rooms
  • Industrial IT & Edge Computing Sites

Optional Enhancements

  • Integrated grounding points
  • Custom height configurations
  • Seismic reinforcement options
  • Matching finish with EMS racks

Why Choose Paarvedan EMS Plinth?

  • Designed specifically for heavy-duty EMS rack systems
  • Improves safety, durability, and serviceability
  • Seamless integration with EMS rack accessories
  • Long service life with minimal maintenance

Model Matrix & Dimensions

Plinth · 50 mm & 100 mm Height · 600 mm & 800 mm Wide

Description Part No. Construction Static Load KGS Make
Plinth/600X650/ 50MM Height P-600-650-50 Formed Steel & Powder Coated 1500 Netrack
Plinth/600X800/ 50MM Height P-600-800-50 Formed Steel & Powder Coated 1500 Netrack
Plinth/600X1000/ 50MM Height P-600-1000-50 Formed Steel & Powder Coated 1500 Netrack
Plinth/600X1200/ 50MM Height P-600-1200-50 Formed Steel & Powder Coated 1500 Netrack
Plinth/800X800/ 50MM Height P-800-800-50 Formed Steel & Powder Coated 1500 Netrack
Plinth/800x1000/ 50MM Height P-800-1000-50 Formed Steel & Powder Coated 1500 Netrack
Plinth/800x1200/ 50MM Height P-800-1200-50 Formed Steel & Powder Coated 1500 Netrack
Plinth/600X650/ 100MM Height P-600-650-100 Formed Steel & Powder Coated 1500 Netrack
Plinth/600X800/ 100MM Height P-600-800-100 Formed Steel & Powder Coated 1500 Netrack
Plinth/600X1000/ 100MM Height P-600-1000-100 Formed Steel & Powder Coated 1500 Netrack
Plinth/600X1200/ 100MM Height P-600-1200-100 Formed Steel & Powder Coated 1500 Netrack
Plinth/800X800/ 100MM Height P-800-800-100 Formed Steel & Powder Coated 1500 Netrack
Plinth/800x1000/ 100MM Height P-800-1000-100 Formed Steel & Powder Coated 1500 Netrack
Plinth/800x1200/ 100MM Height P-800-1200-100 Formed Steel & Powder Coated 1500 Netrack
