Intelligent Access Controller.
Advanced physical security for critical infrastructure.

Paarvedan EMS delivers the Intelligent Access Controller — an advanced physical security management solution for data centers, IT rooms, and mission-critical environments. Real-time access control, multi-factor authentication, and seamless rack integration.

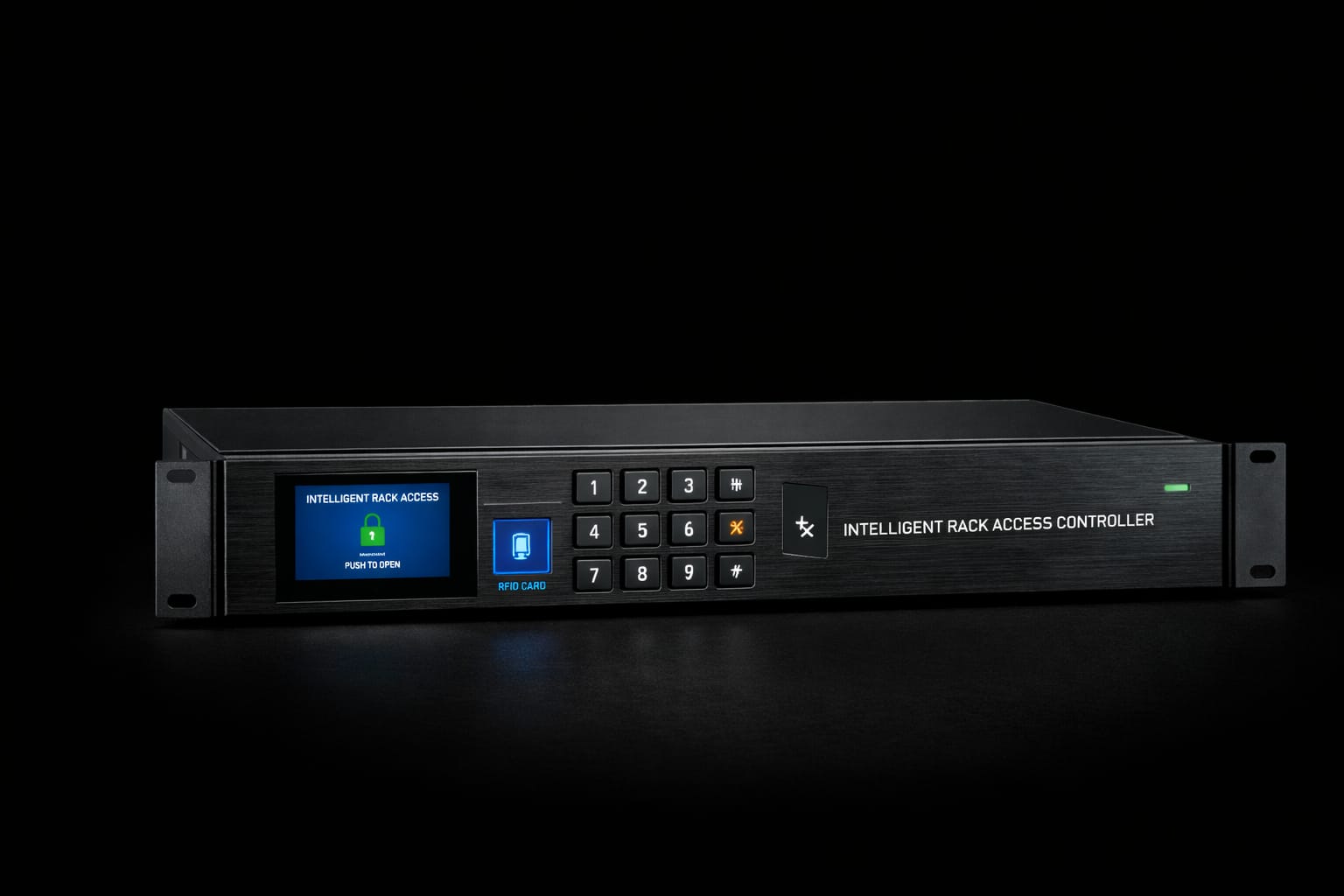

Paarvedan EMS Intelligent Access Controller

⚡ centralized · encrypted · fully traceable

The Intelligent Access Controller transforms traditional rack security into a smart, scalable ecosystem. Centralized management, multi-factor authentication, encrypted communication, and detailed audit trails ensure only authorized personnel access sensitive equipment.

RAC00 1U 2-Door Controller
RAC-001 Keypad Operating Module
RAC-002 Keypad + EM Card
RAC-003 Keypad + Mifare Card
RAC-006 Keypad + Biometric
RAC-011-1 1-Point Swing Handle Lock
RAC-012 Door Status Switch
RAC-015 Advanced Management SW

50,000 users · 1,00,000 events · 2 doors · multi-factor authentication

key capabilities

centralized management · multi-factor authentication · real-time monitoring

Centralized Access Control

Manage and monitor multiple racks, doors, and security zones from a single unified platform with complete visibility.

Multi-Factor Authentication

Configurable methods: RFID Card, PIN Code, Biometric Authentication, and Mobile-Based Credentials (Optional).

Real-Time Monitoring & Alerts

Instant alerts for unauthorized access, forced entry detection, door-open violations, and tamper notifications.

Comprehensive Audit Trails

User activity logs with timestamps, rack-level access history, event tracking, and exportable compliance reports.

Remote Access Management

Grant, revoke, or schedule user access remotely through secure network connectivity from anywhere.

Seamless Rack Integration

Fully compatible with EMS intelligent rack handles, electronic locks, door sensors, and monitoring modules.

technical specifications

ARM 32-bit RISC processor · encrypted communication · scalable architecture

CPU

ARM 32 Bit RISC Processor

Memory

Up to 8 MB (Flash)

Number of Doors

2

Number of Readers

2

Events/Transactions

1,00,000

Number of Users

50,000

Web Server

Yes

Reader Interface

Wiegand Up to 34 Bit

Input / Output

4 Input / 4 Output

Communication Port

TCP/IP, RS485

Fire Integration

Yes

Intrusion Integration

Yes

LCD

16x2 LCD Display

Keypad

4x3 Key with Soft Keypad

Baud Rate

96000bps (Default)

Controller ID

Unlimited

Language

English

Power Supply

12 V DC / 5A

Enclosure

1U Rack Enclosure

Time Zone / Access Levels

63 + 1 (Free Time Zone/Unlimited)

Time Zone Slots

4 Slots per Day

Holiday Settings

42

advanced features

enterprise-grade security · granular control · intelligent automation

Role-Based Access Policies

Define hierarchical access levels for administrators, IT engineers, vendors, auditors, and third-party technicians.

Time-Bound & Zone-Based Permissions

Restrict access to specific racks, rooms, or zones during approved time windows with 63+ time zones.

Fail-Safe & Fail-Secure Operation

Configurable system behavior during power outages or network disruptions for maximum reliability.

Environmental Event Correlation

Integrates with temperature, humidity, and door sensors to trigger contextual alerts based on environmental conditions.

Scalable Architecture

Expandable from a single rack installation to large, multi-site enterprise deployments with unlimited controller IDs.

model matrix · intelligent access controller

control modules · operating modules · door accessories · management software

Control Module

#DescriptionSKU
1Intelligent Rack Access Controller/1U 2Door+TCPIP+Modbus+(Management Software/Single location/Access Database Software/500 User/Max Data 60MB)RAC00

Operating Modules

#DescriptionSKU
2Operating Module / KeypadRAC-001
3Operating Module Keypad / EM CardRAC-002
4Operating Module Keypad / Mifare cardRAC-003
5Operating Module / Keypad + HID Prox card / 125KhzRAC-004
6Operating Module /Keypad +HID I class / 13.5MhzRAC-005
7Operating Module / Keypad +Biometric ReaderRAC-006
8Operating Module / Keypad +EM Card +Biometric ReaderRAC-007
9Operating Module / Keypad + Mifare card+Biometric ReaderRAC-008
10Operating Module / Keypad + HID Prox card / 124Khz+Biometric ReaderRAC-009
11Operating Module / Keypad +HID I class / 13.5Mhz+Biometric ReaderRAC-010

Door Accessories

#DescriptionSKU
12Swing Handle Lock / Mechatronics/1PointRAC-011-1
13Swing Handle Lock / Mechatronics/3PointRAC-011-3
14Swing Handle Lock / Mechatronics/4PointRAC-011-4
15Door Status SwitchRAC-012
16Door Status SensorRAC-013

Advanced Management Software

#DescriptionSKU
17Management software / Multi-location / MS SQL database (Up to 1000 Users) SQL License in Customer Scope / SQL Express: 4GB & SQL LicenseRAC-015
Complete system includes control module + operating module + door accessories · Configure based on security requirements

applications

mission-critical environments · enterprise security

Data Centers & Colocation Facilities

Enterprise IT & Server Rooms

Telecom & Edge Computing Sites

Banking & Financial Institutions

Government Infrastructure

Healthcare & Mission-Critical Facilities

Smart Buildings & Control Rooms

key benefits

why choose intelligent access control

Prevents unauthorized
physical access
Enhances compliance
with security regulations
Improves accountability
with detailed access logs
Centralized & remote
infrastructure management
Reduces dependency
on manual keys and locks
Strengthens overall
physical security posture
Supports digital transformation
of IT infrastructure

why choose Paarvedan EMS Intelligent Access Controller?

intelligent · automated · future-ready

The Paarvedan EMS Intelligent Access Controller is engineered to meet the evolving security demands of modern IT infrastructure. With advanced authentication methods, encrypted communication, centralized management, and seamless rack integration, it converts conventional rack security into an intelligent, automated, and future-ready access control ecosystem. It is the ideal solution for organizations that prioritize security, auditability, scalability, and operational efficiency in their critical infrastructure environments.

Security Auditability Scalability Efficiency

secure your critical infrastructure

data centers · server rooms · telecom sites · mission-critical facilities

free site assessment 5‑year warranty 24/7 support custom configurations
